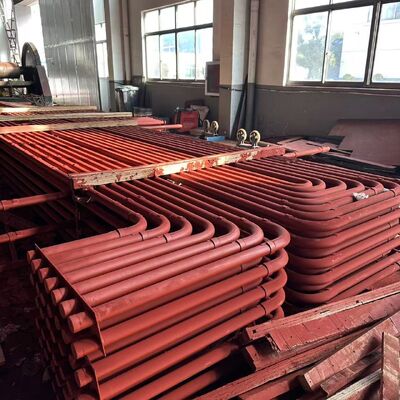

商品の詳細:
|
| 耐久性: | 非常に耐久性があります | 製品タイプ: | スペアパーツ |
|---|---|---|---|
| 機能性: | ボイラーの適切な機能に不可欠です | モデル: | さまざまなモデルが利用可能です |
| 効率: | 高効率 | 応用: | ボイラー |
| 色: | メタリック、部位により異なります | 保証: | 12ヶ月 |
| サイズ: | さまざまなサイズをご用意 | 互換性: | さまざまなボイラーモデルに適合 |
| 耐食性: | 高い | 加圧: | 25barまで |
| 長さ: | 1000mm | メーカー: | ボイラーテック株式会社 |
| 設置方法: | ボルト接続 | 重さ: | 特定のスペアパーツに応じて異なります |
| キーワード: | ボイラー過熱装置 | 温度 抵抗: | 最大600°C |
| 製品名: | ボイラー用スペア部品 | リードタイム: | 7-15営業日 |
| PartType: | バルブ、ガスケット、バーナー、ポンプ、センサー、サーモスタット | 設置タイプ: | ボルトオン、フランジ付き、ねじ込み式 |
| 材料: | 鋼、鋳鉄、銅、ステンレス鋼 | 使用温度範囲: | -20°Cから300°C |
| パーツタイプ: | バルブ、ガスケット、バーナー、サーモスタット、ポンプ、センサー | プレッシャー: | 0.2MPa |
| 寸法: | 部品の種類によって異なります | タイプ: | 自然循環、オイルバーナー、ボイラーチューブ、スリーパス、ボイラー空気予熱器 |
| 製品名: | デュアル燃料重油およびガスバーナー、ボイラー部品、CWNS/WNS オールインワン凝縮温水ボイラー、CFB ボイラー SA210A1 炭素鋼加熱ボイラー空気予熱器 ASTM、バイオマスボイラーのスペア | 使用法: | 産業用、発電所、スイミングプール、発電所、家庭用および産業用暖房 |
| 燃料: | 廃熱、石炭火力、天然ガス、重油、各種廃油 | 証明: | ISO9001,CE,ISO,CE/PED/RoHS/Watermark,ASME |
| 提供されるアフターサービス: | 利用できるエンジニア機械類を、海外に整備するため、提供される海外サービス無し利用できる海外第三者サポート利用できる海外サービス センター | スタイル: | 横型、縦型、CFBボイラー、その他 |
| 状態: | 新しい | 出力: | 蒸気、熱水、熱水/蒸気 |
| 寸法(長さ*幅*高さ): | カスタマイズ、カスタマイズ可能、カスタマイズ、依存、9.28 * 4.35 * 5.77M | 構造: | 火管、水管、チューブ熱交換器、火/水管 |
| 名前: | 機械、ボイラー部品、循環流動床 (CFB) ボイラー、商業ボイラー、ゴールドサプライヤー工場 スプロケットに関するボイラー部品 | ||
| ハイライト: | boilers spare parts for steam reheating,thermal power plant superheating components,efficient boilers spare parts with warranty |
||
Advantages:
1. ensure sealing of furnace wall and reduce air leakage in combustion chamber.
2.realize full water cooling of the combustion chamber, which is helpful to prevent coke formation in the case of intensified combustion.
3. small capacity of heat storage, fast heating of combustion chamber and rapid cooling, can shorten the cooling time of boiler start and stop.
4.it is appropriate to use pipe furnace wall, which greatly reduces the load of boiler frame and is convenient for suspension.
5.compared with the optical tube, the heat absorption capacity of the tube is improved.
6.the pre-combination degree of boiler components is improved, which is convenient and reduces the installation workload.
Product Description:
A waterwall in a boiler is any furnace wall that is comprised of refractory and tubes in a water-tube boiler. The tubes are evenly spaced and generally connect to headers which in turn are connected back to the main generating bank of the boiler. They serve a two fold purpose here in that they capture heat that would otherwise escape to the atmosphere and help heat the water in the boiler. And they also help keep the refractory cool.This prevents spalling of the refractory.
Specification:
| Name | Membrane water panel |
| Material | Carbon steel,Alloy steel,etc. |
| Tube size | Φ38 - 76 mm, Customization |
| Standard | ISO , ASME |
| Model | Studded |
| Dimension | Customization |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Polishing→Tube joint welding→Assembly →Welding→Inspection→Heat treatment→Hydraulic pressure test→Painting→Packaging |
| Installation location | Around the boiler combustion chamber |
Usually laid vertically on the inner surface of the furnace wall, it is mainly used to absorb the radiant heat from the flame and high-temperature flue gas in the furnace.It is the main type of evaporative heating surface of modern boiler and also the basic part of water circulation loop of boiler.As a combination of cooling and protective furnace wall.
The water-cooling walls were originally designed not to be heated, but to cool the furnace so that it would not be damaged at high temperatures.Later, as a result of its good heat exchange function, gradually replaced the drum to become the main heating parts of the boiler.
An evaporative heating surface composed of many parallel pipes is arranged on the inner wall of the boiler furnace.The role of the water wall is to absorb the radiant heat of the high temperature flame or flue gas in the furnace, generate steam or hot water in the pipe, reduce the temperature of the furnace wall, and protect the furnace wall.In the large capacity boiler, the flame temperature is very high and the intensity of thermal radiation is very high.The boiler contains 40 to 50 percent or more of the heat absorbed by the water wall.With the exception of a few small capacity boilers, modern water tube boilers use water cooling walls as the main evaporative heating surface.
Q1: How long is the warranty period?
We provide 18 months warranty for all spare parts(exclude fragile parts).
Q2: How can we guarantee quality?
1 All machines are in strict accordance with the ISO quality and CE system requirements.
2 Each procedure is crafted by professional Skilled labour, followed by particular QC
3 All information of our products can be checked in efficient management system.
Q3: What can you buy from us?
Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall,
Boiler manifold headers and other pressure spare parts.
Q4: What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.
Q5: Are you a factory or trading company, where are you located?
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.
We offer pickup service at Shanghai for your visit.
